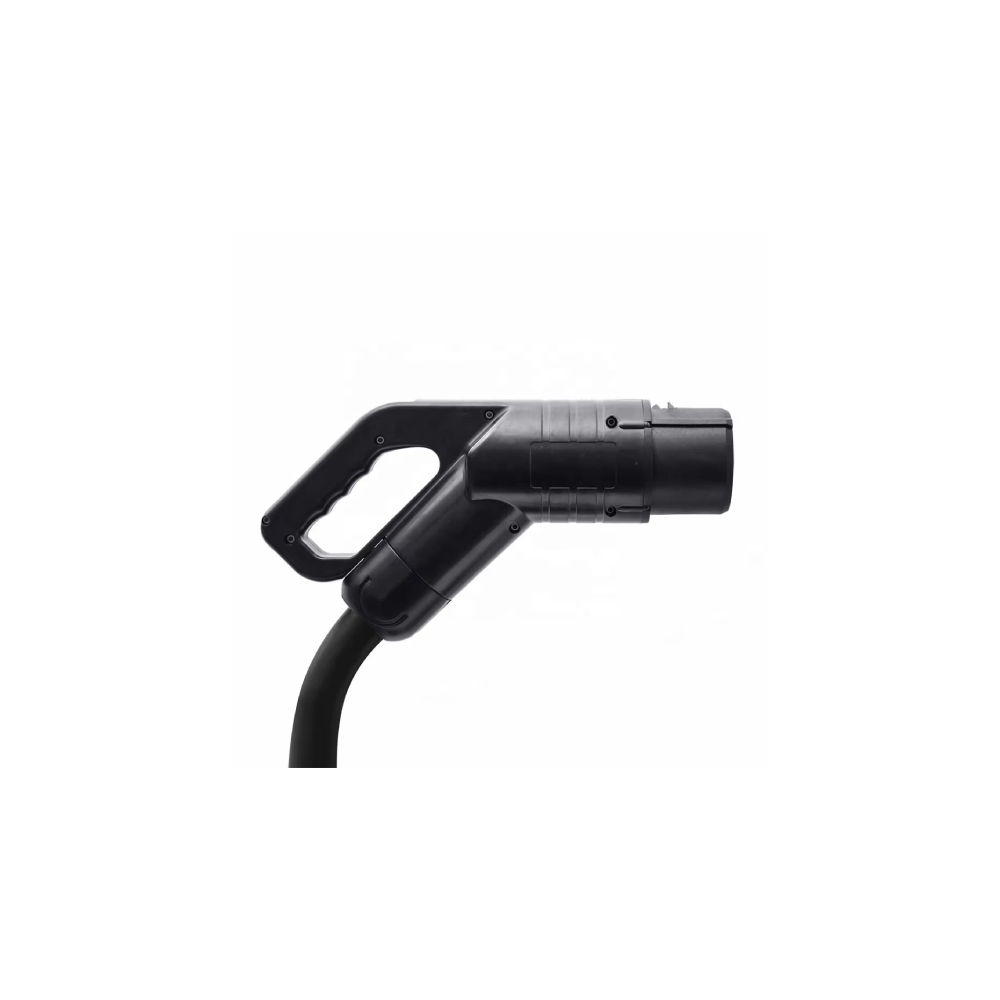

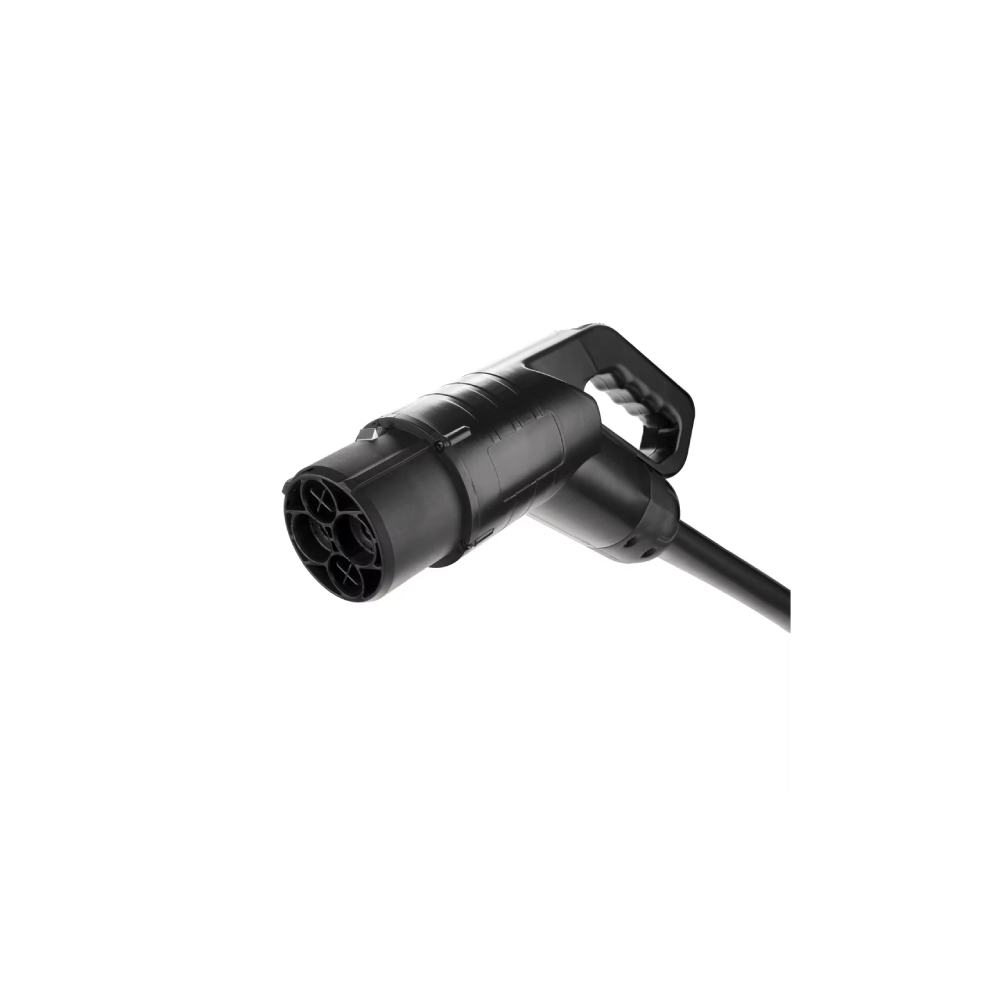

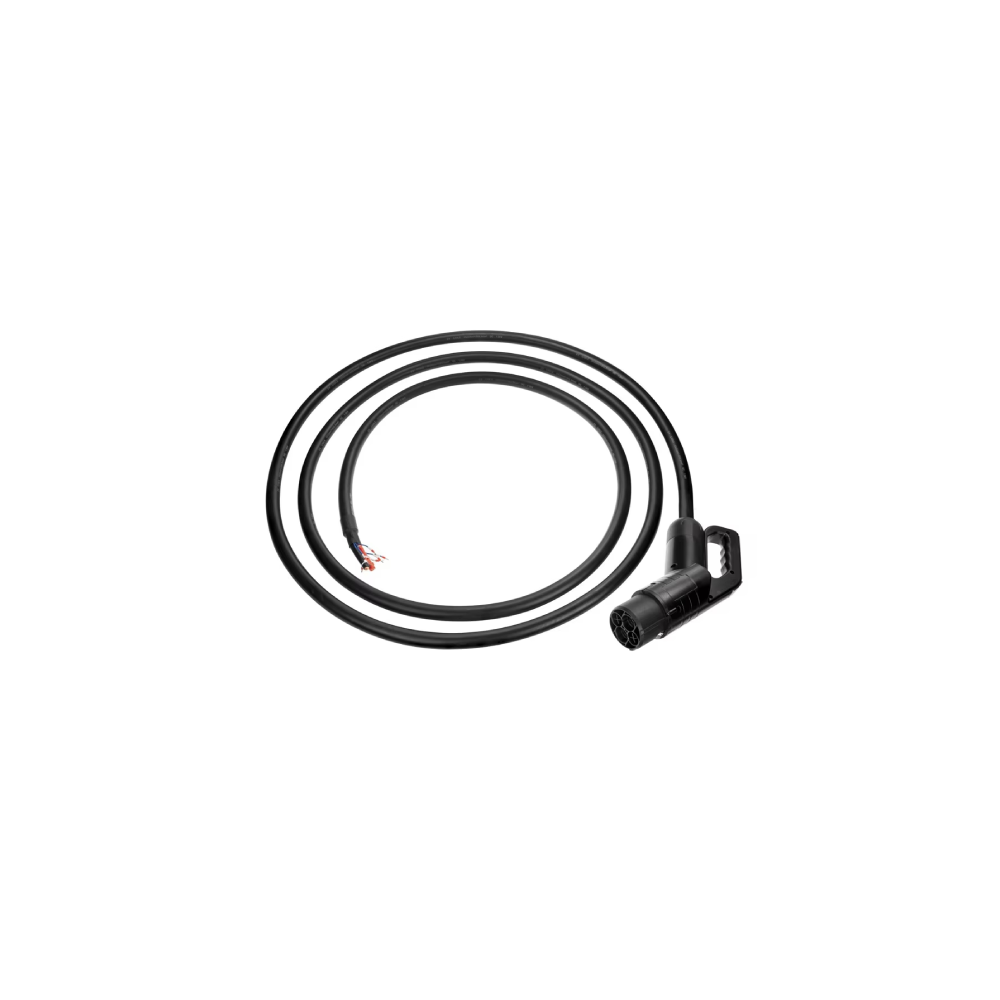

CHAdeMO DC Charging Cable With Open End
80Akw 125A
Description
This product is a high-quality connector that supports voltage values up to 1000V DC and currents up to 125A. With an IP55 dust and water protection rating and a UL94V-0 flame rating. It has a long mechanical lifespan, with the ability for more than 10,000 safe connections and disconnections. It is ideal for a wide range of applications, including industrial, commercial, and household systems.
Features
· Shell material is thermoplastic (Insulator inflammability UL94 V-0)
· Contact Pin is Copper alloy, silver or nickel plating
· Sealing gasket is rubber or silicon rubber;
· Insulation resistance is 2000MQ2(DC1000V)
· Safety pins insulated head design to prevent accidental direct<50K
· Excellent protection performance, protection grade IP55
· Plugin/pull out> 10000 times
