Features
1. Seamless compatibility of charging facilities in China and Europe

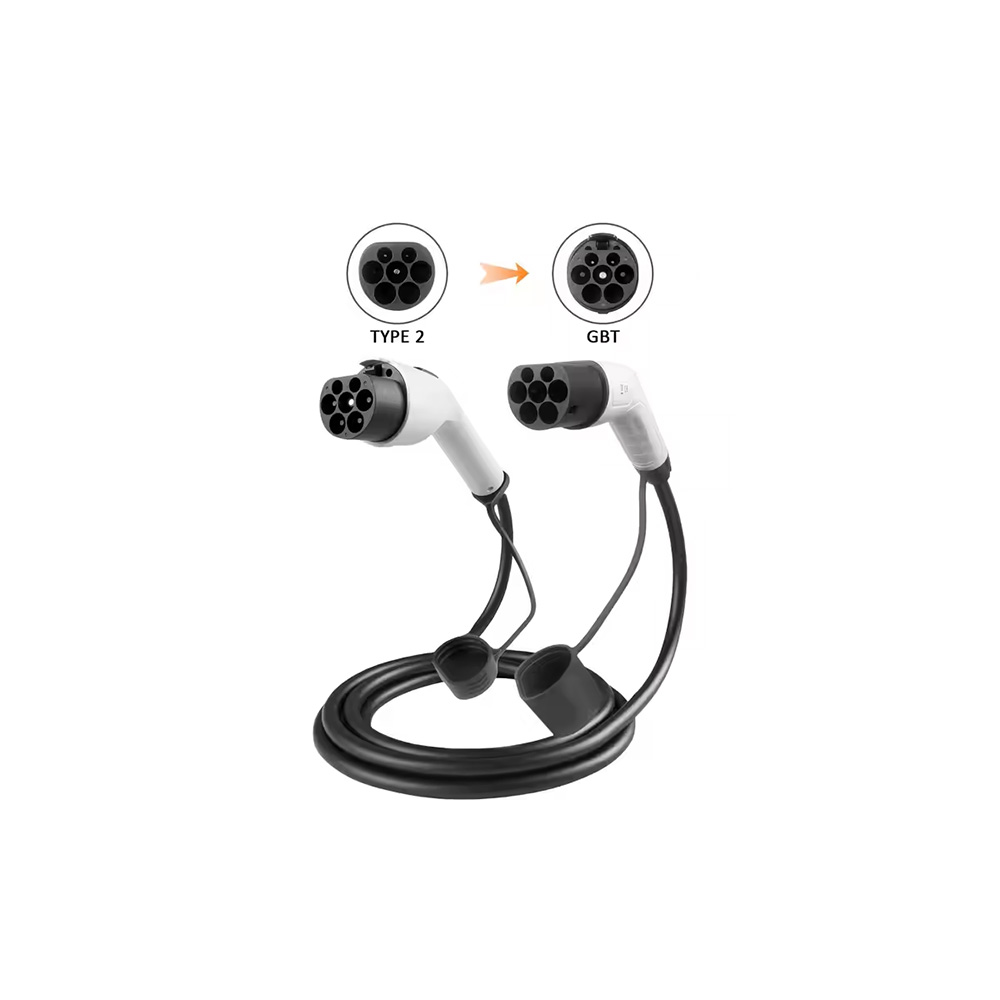

Protocol conversion: supports mutual conversion between IEC 62196-2 (European standard pile) and GB/T 20234.2-2011 (national standard vehicle) communication protocols, covering plug-and-play of mainstream national standard models such as BYD, BAIC, and Tesla domestic version in European charging piles.
Mixed fleet management: A single cable is suitable for vehicles in China and Europe, reducing the procurement cost of multi-standard charging equipment by 30%.
2. Enhanced reliability in industrial environment
Mechanically strengthened structure:
·Crush resistance: Passed the 2-ton vehicle crush test (higher than GB/T 20234 standard), suitable for forklift traffic areas in logistics parks.
·Weather resistance: TPU sheath is resistant to UV aging and oil stains (in accordance with DIN VDE 0482), and is suitable for high salt spray environments in ports.
Electrical safety redundancy:
Self-cleaning terminals: Silver plating suppresses contact resistance drift (actual measurement <5%), extending the interface life by 30%.
Double protection: IP55 waterproof structure + screwless riveting process, eliminating the risk of arc caused by loose interfaces.
3. Operational cost optimization
Long life and cost reduction: 10,000 plug-in and unplug life (average 3 times per day, > 9 years), 100% higher than the industry average of 5,000 times.
Power loss control: Low impedance copper core (6mm² conductor resistance ≤ 0.0033Ω/m), 10 meters line loss < 3% under 22kW load.
