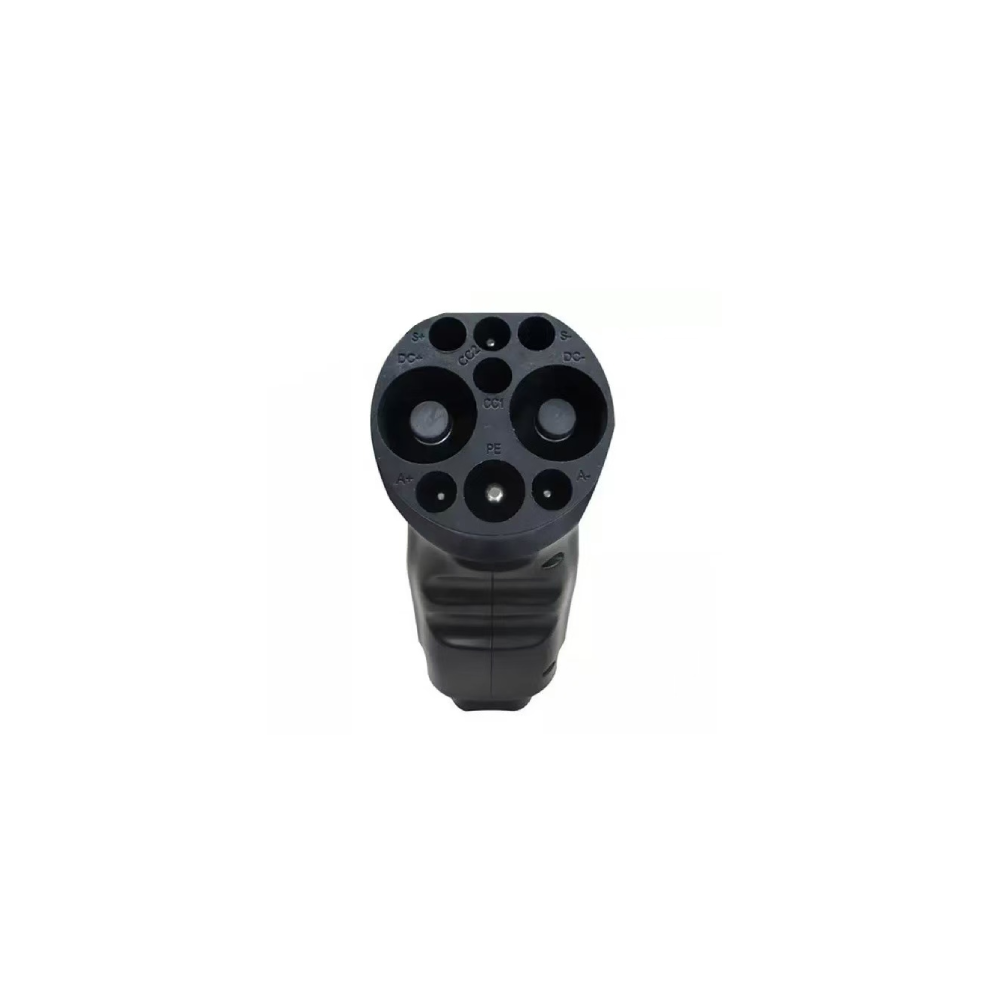

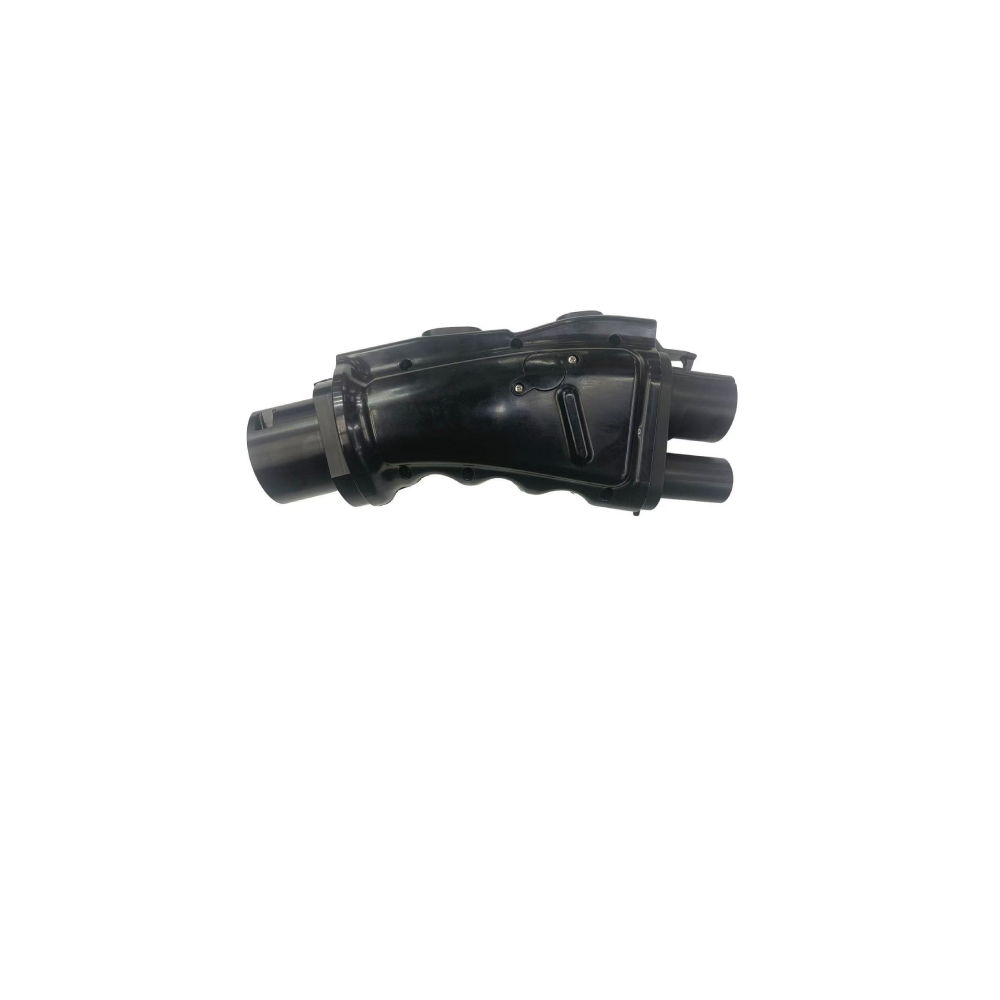

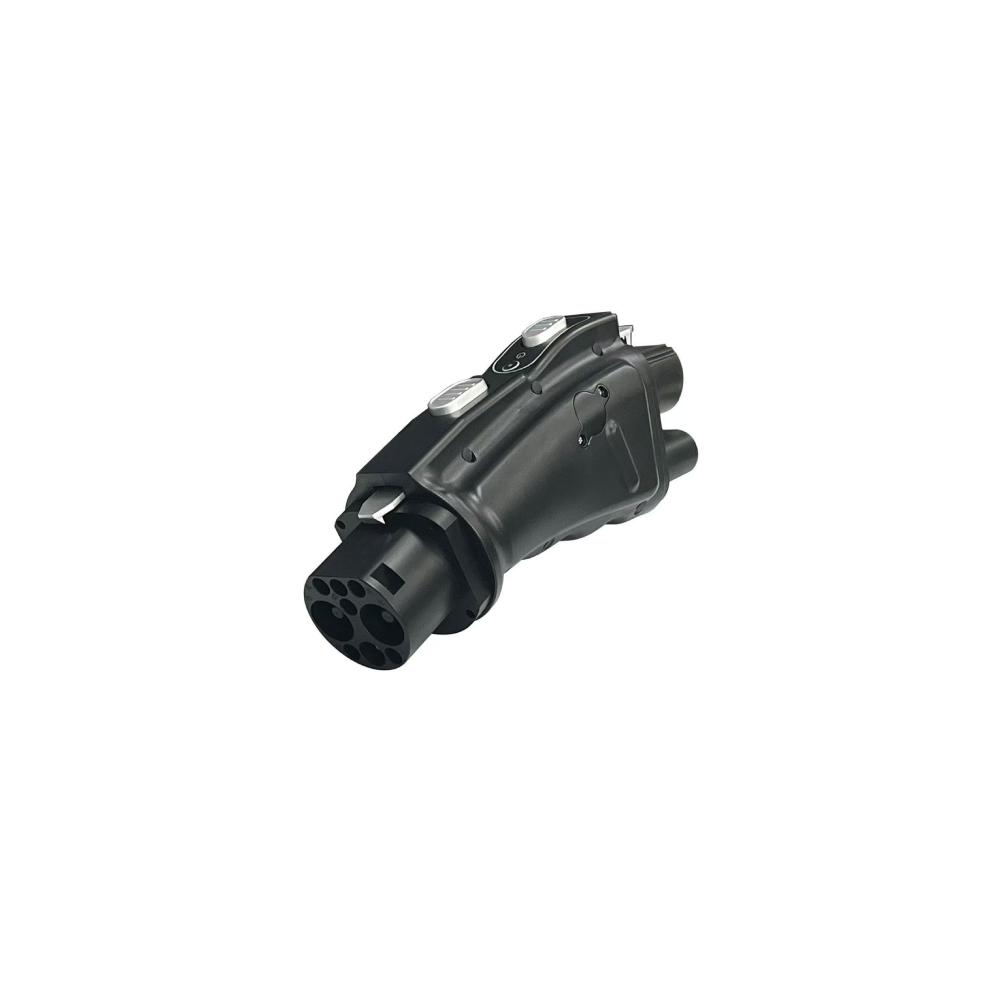

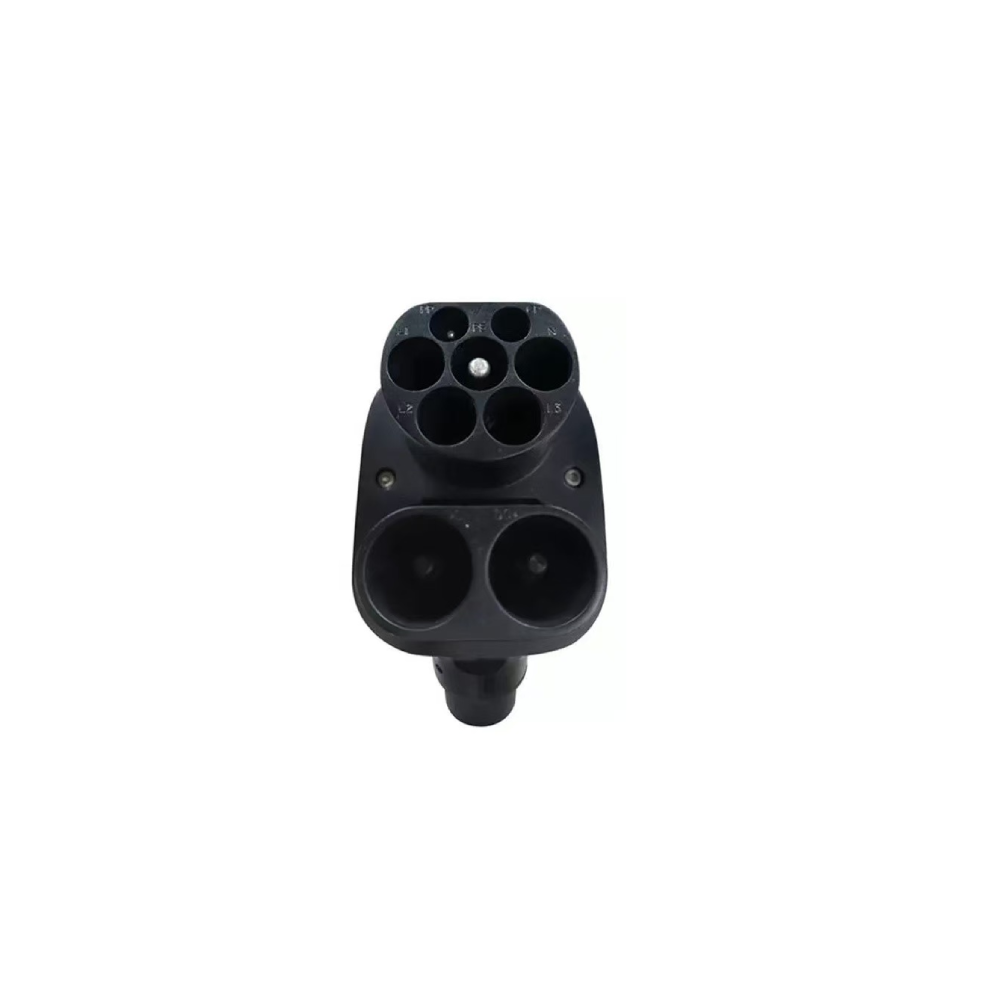

CCS2 to GB/T DC Electric Vehicle Adapter

This adapter allows you to charge electric vehicles imported from China at CCS2 charging stations. The adapter is rated at 250 kW,and compatible with all EVs with a GB/T port.

Description

1.Unmatched Compatibility

Wide Vehicle Coverage: Specially designed for Chinese EV brands (BYD, Geely, GAC, Tesla China, etc.) to charge at CCS2 DC fast stations (up to 250kW), eliminating infrastructure barriers for fleet operators.

Dual-System Integration: Bridges GB/T (China) and CCS2 (EU) standards, critical for logistics fleets operating across regions.

2.Industrial-Grade Performance

High-Efficiency Conductors: Silver-plated copper terminals reduce resistance, supporting 250A continuous current and 1000V DC for ultra-fast charging.

Extended Durability: UL94-V0 flame-retardant shell + IP54 protection, rated for 10,000+ cycles in harsh environments (-30°C to 50°C).

3.Proactive Safety

Dual-Temperature Protection:

Stage 1: Power derating at high temperatures.

Stage 2: Automatic shutdown at 90°C, with auto-resume once cooled.

Secure Locking: Silicon rubber gasket and anti-slip latch ensure stable connections during charging.

Features

· Rated for up to 250KW Power
· 250A DC Rated Current
· PC+ABS Insulator inflammability UL94 V0 Shell Material
· -30°C to 80°C Operating Temperature
· -30°C to 85°C Storage Temperature
· 500~1000V DC Rated Voltage
· Single Temp. kill switch. Charging stops when adapter reach to 90°C
· CE Certification
· IP54 Degree of protection

Commercial Properties

Local market distributors and auto parts retail supermarkets can join our growing network of charging partners by offering portable EV charging products, expanding the market at a rapid pace.

CCS2 to GB/T DC Electric Vehicle Adapter

Recommended Products

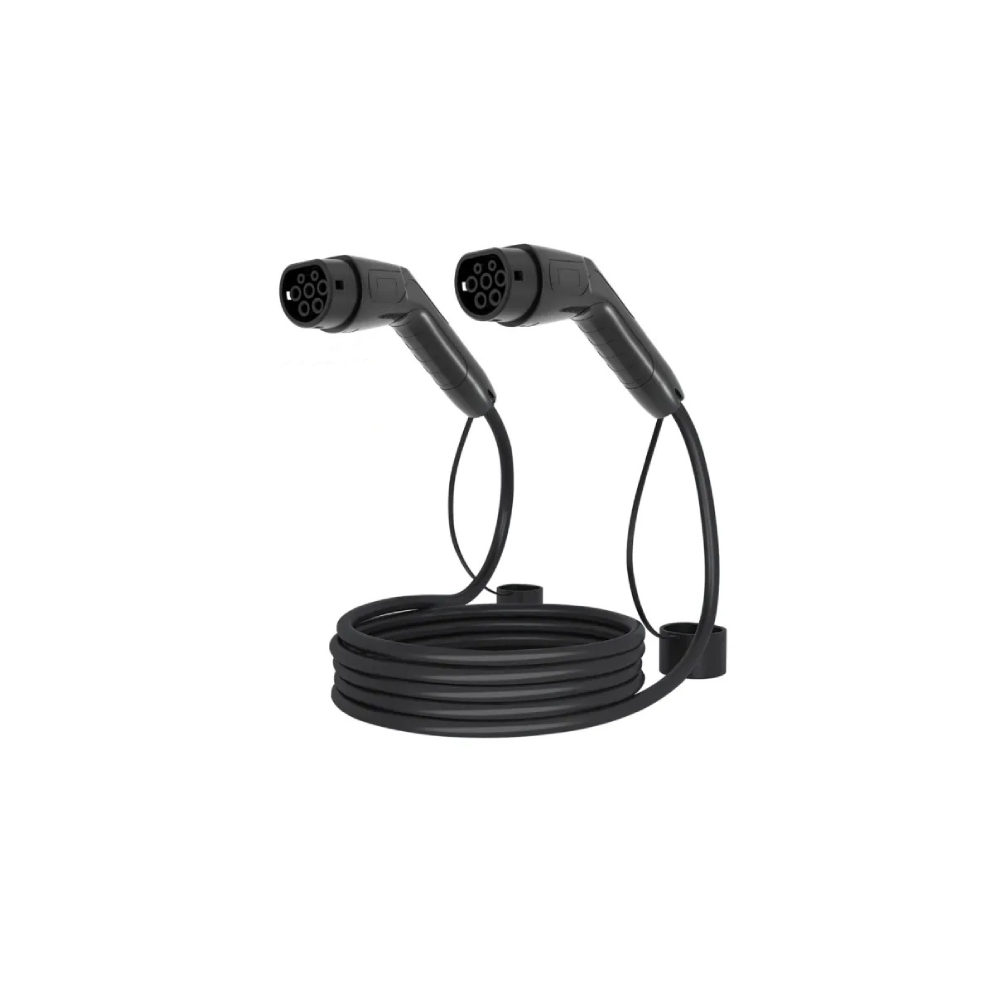

Mode 3 Charging Cable- Type 2 to Type 2
